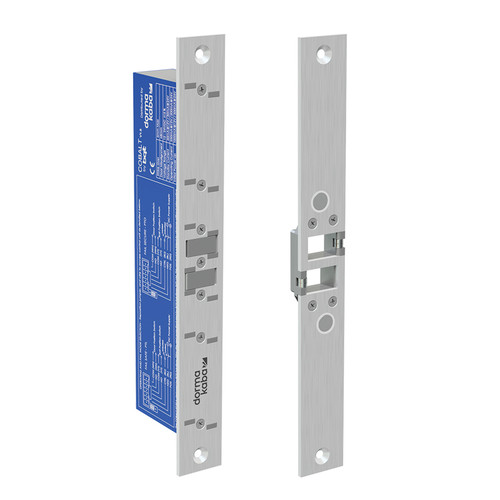

SL30DBL

COBALT Electronic Side Load Lock

The SL30DBL COBALT electronic side load lock is a motor driven electronic lock designed to secure commercial and residential double acting doors. The lock addresses the two biggest issues in door locking; the ability to align a misaligned door and the ability to release when requested, even with excessive load on the door. Reliable, secure, convenient; the COBALT has arrived.

Door Alignment

• Door misalignment of up to 8mm is corrected

Side Load Release

• The door can have in excess of 100kg being applied and it will still release instantly when requested

High Security

• Automatic deadbolting
• 10,000N holding force (1,000kg)
• Two, 10mm thick stainless steel bolt pins

Electronic Convenience

• Input voltage from 12VDC – 24VDC
• Less than 50mA standby current
• Reverse polarity and transient protection
• Multiple attempts to lock

Simple Configuration

• Convert from Fail Safe to Fail Secure by repositioning a single jumper

Dual Monitoring

• Door and bolt position monitors

Versatile Installation

• Mortice mount horizontally or vertically, on double acting doors
• Surface mount with the aid of the accessories, including mounting onto glass

Physical dimensions

• 255mmL x 30mmW x 51mmD
