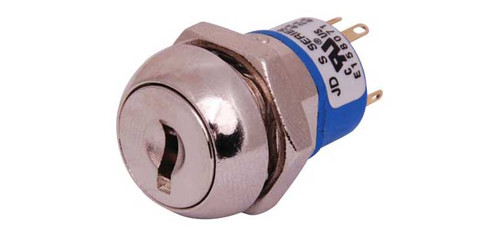

Key is removable in one position only. Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch.
Rated 2A @ 250V AC.
Supplied with two keys
Connection Details
Pole 1 makes to:
Pos. 1 - 8, 1
Pos. 2 - 1, 3
Pole 2 makes to:
Pos. 1 - 4, 5
Pos. 2 - 5, 7
