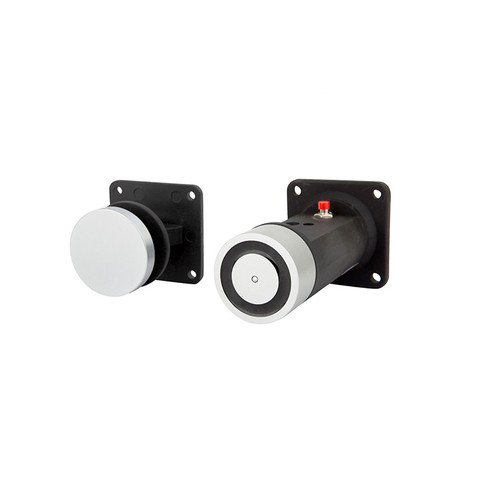

LOX Hold Open Magnet - Black base 12VDC Horizontal Mount
Fire and smoke door magnetic door holder, titanium alloy surface finish, elegant appearance.
Installed on fire and smoke doors in projects where doors are required to be held in the open position for both pedestrian and general traffic, the devices have to be linked into the buildings fire/smoke alarm system.
Features
- Suitable for wall mounting.
- 4-hour fire rated.
- Up to 25kg holding force.
- Voltage 12Vdc @ 160mA.
- Size (D) 108 mm (W) 59 mm (H) 59 mm.
- Push button door release.
- Finished in black.
