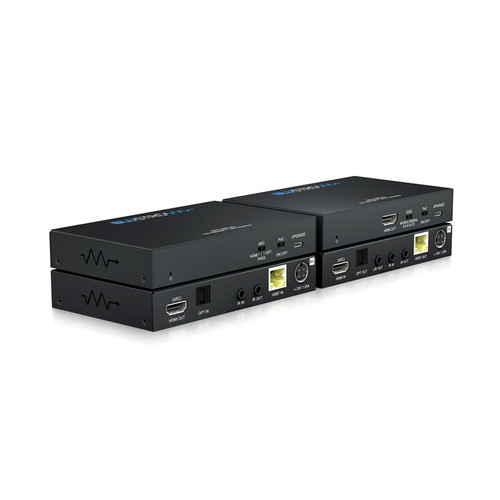

HEX70ARCKIT

HDBaseT ARC Extender Set - 70m (4K up to 40m), ARC, Bi-directional IR, Bi-directional PoC

The HEX70ARC-KIT 4K HDBaseTâ„¢ ARC extender set offers market leading features for the custom installation industry. The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).

• Advanced HDBaseTâ„¢ technology offering uncompressed video and audio with zero latency

• Extends HDMI 1080p up to a distance of 70m over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input

• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)

• Bi-directional IR pass-through

• Supplied with Blustream IR receiver and emitter

• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

• HDCP 2.2 compliant with smart EDID management

* Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.
