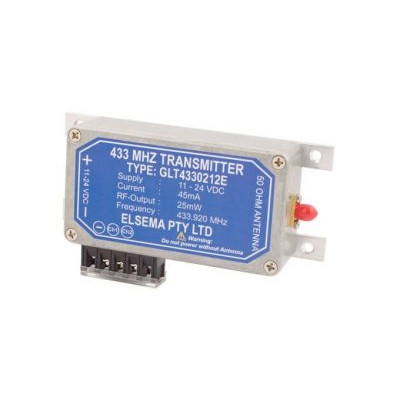

Long Range, GIGALINK® Series 433MHz Base Station Transmitter
(Supplied with ANT433MICRO)
These base station 433MHz GIGALINK® transmitters can operate up to 1000 metres. These GIGALINK® transmitters can be programmed to the 433MHz GIGALINK® receivers.
The transmitters are available with 1, 2, 4 and 8 inputs. The transmission is secure with over 4 billion code combinations.
Features:
- Available for 1, 2, 4 and 8 channel applications
- Over 4 billion code combinations
- Wire in pushbuttons or switches easily on the terminal blocks
- Built-in LED indicates transmission
- Compatible with all GLR433 series receivers
- Available with durable alloy metal case, E in the part number or no case, NC
- Selectable transmission modes, off delay, continuous and one burst
Technical Data:
- Operating range of up to 1000 metres (varies upon receiver antenna & location)
- 25mWatt 433MHz transmission.
- 20uA on standby and 45mA at 12VDC supply while transmitting
- Operating frequency: 433.920 MHz (other frequencies available on request)
- Selectable transmission modes, off delay, continuous and one burst
Application Data:
The maximum continuous transmission time for all our transmitters is limited to five minutes to comply with local radio regulations.
To activate a receiver longer than 5 minutes, use a delay-off feature in the receiver (GLR43301) and transmitter. The delay-off feature in the receiver needs to be set more than the transmitter. This ensures that the transmitter keeps resetting the off delay in the receiver.
